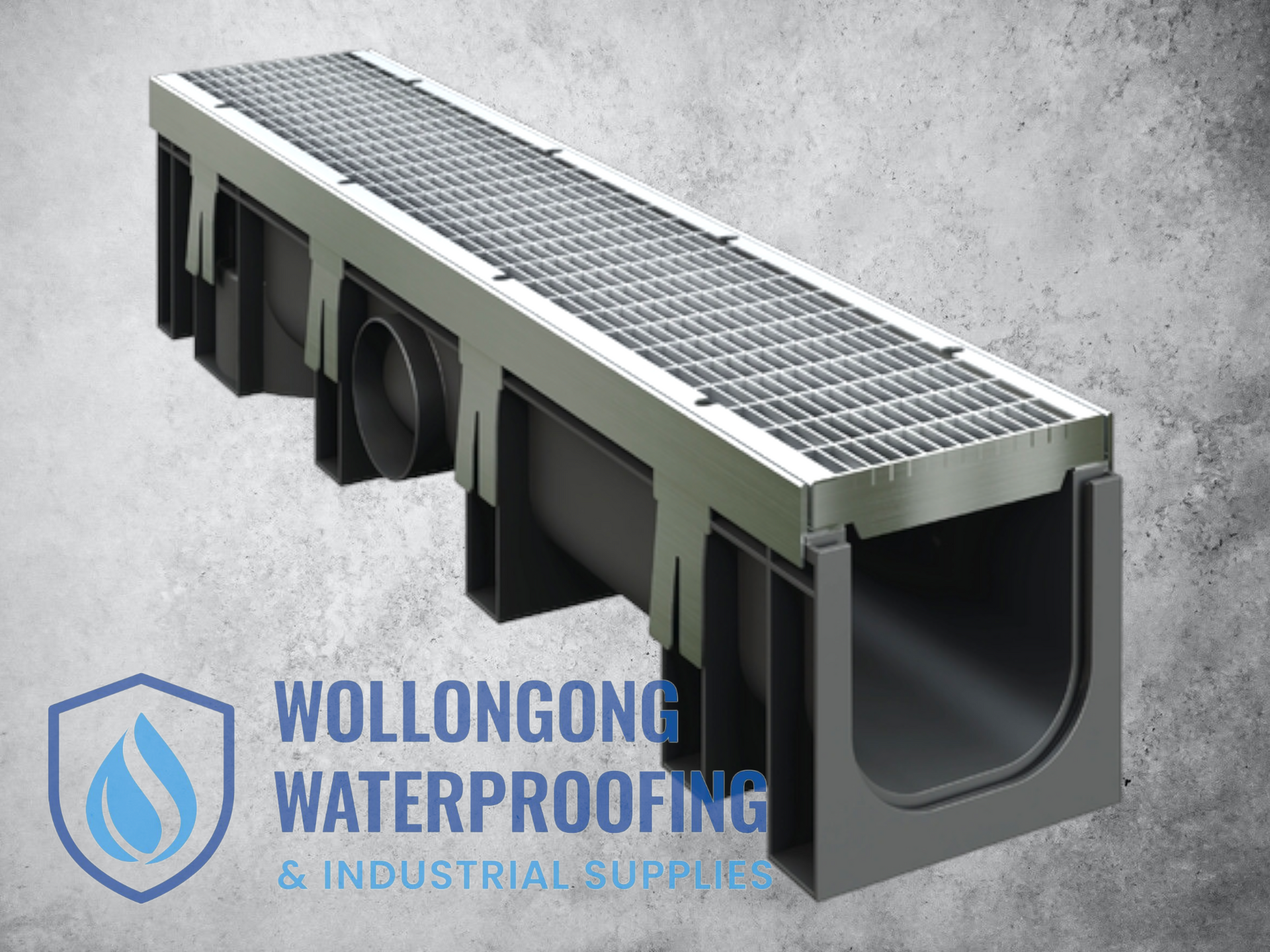

DuraDRAIN 150 Series Channel & Grate 1m

Class B Trench Drainage System

The DuraDRAIN 150 Series is a durable and versatile trench drainage system designed for residential and light commercial applications. Featuring a UV-stabilised recycled polymer channel and galvanised steel Class B grate, it provides reliable surface water management in driveways, carparks, and paved areas.
Manufactured in Australia by Everhard, this system combines strength, sustainability, and easy installation in one complete drainage solution.

Features & Benefits:
Class B load-rated galvanised steel grate
Strong recycled polymer channel
UV stabilised for long service life
Lightweight — one-person installation
Pre-moulded outlets for fast pipe connections
Modular system for easy cutting and joining
5-year polymer warranty

Ideal For:
Driveways
Carparks with light vehicle traffic
Residential drainage
Commercial paved areas
Walkways and hardscapes

Specifications;
Size: 1000mm (L) x 202mm (W) x 211mm (H)
Internal channel depth: 150mm
Load Rating: Class B (AS 3996)
Slip Resistance: P5 (AS 4586)
Made from 100% recycled polymer

Installation:
Lightweight modular design for easy handling
Pre-shaped outlets for stormwater pipe connection
200mm cutting guides for simple on-site adjustments
Compatible with converters for male/female joins

🔮WWIS Pro Tip.
When installing a trench drain along a driveway or pedestrian area, make sure the channel has a consistent fall towards the stormwater outlet and that the grate sits flush with the surrounding surface. The DuraDRAIN 150 Series Class B system is designed to help efficiently capture surface water before it can pool or flow into unwanted areas, making correct positioning and installation key to achieving the best drainage performance.
